Configure Microsoft NPS to authenticate on‑prem AD users for Firebox IKEv2 mobile VPN

IKEv2 with MS‑CHAPv2 cannot authenticate directly against LDAP, so a RADIUS server is required. The simplest option is Microsoft NPS, which is included with Windows Server. (FreeRADIUS works too, but this guide focuses on NPS.)

Install NPS on a Windows Server

You can install NPS on any Windows Server, including a Domain Controller.

Server Manager
Manage → Add Roles and Features
Select Network Policy and Access Services

PowerShell (Admin):
Install-WindowsFeature NPAS -IncludeManagementTools

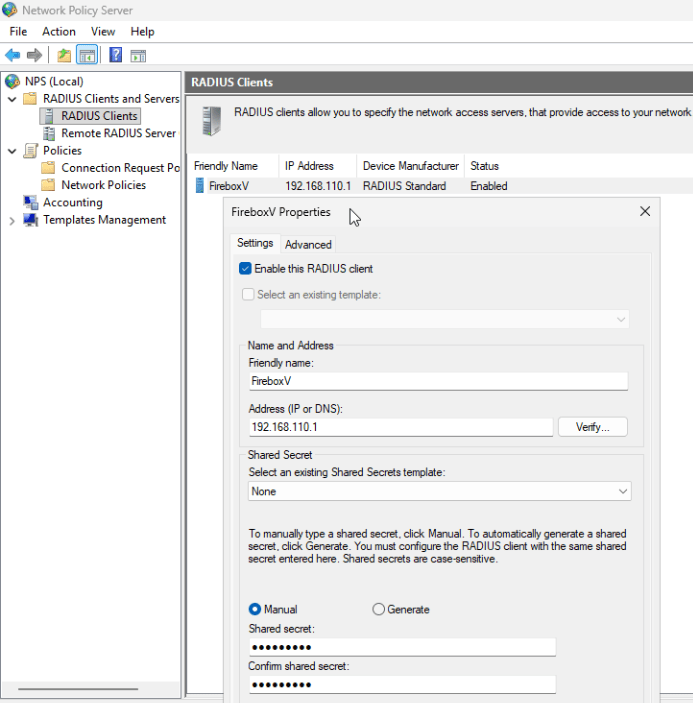

Add the Firebox as a RADIUS Client

In NPS → RADIUS Clients and Servers → RADIUS Clients:

• Friendly name: Firebox name
• Address: (usually the internal IP address of the Firebox that is local to the RADIUS server)
• Shared Secret: Must match what you configure on the Firebox

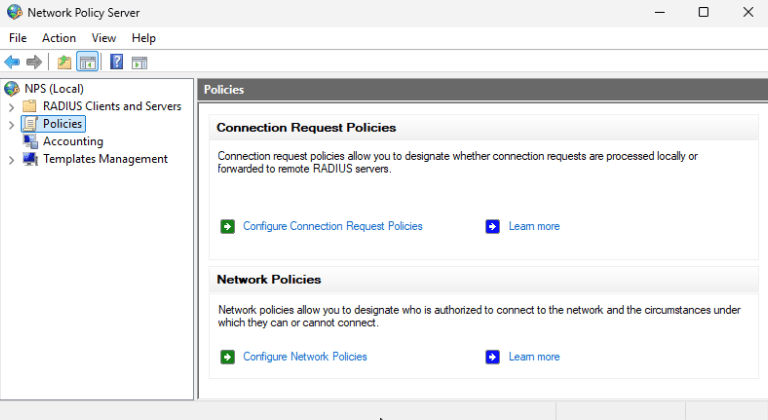

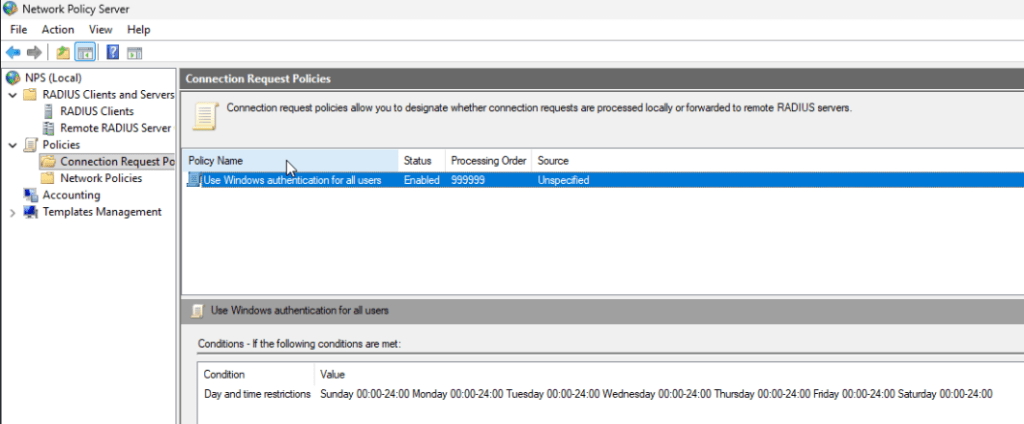

Ensure the Default Connection Request Policy Is Enabled

In Policies → Connection Request Policies, make sure the default policy is active. (You normally don’t need to modify it for IKEv2.)

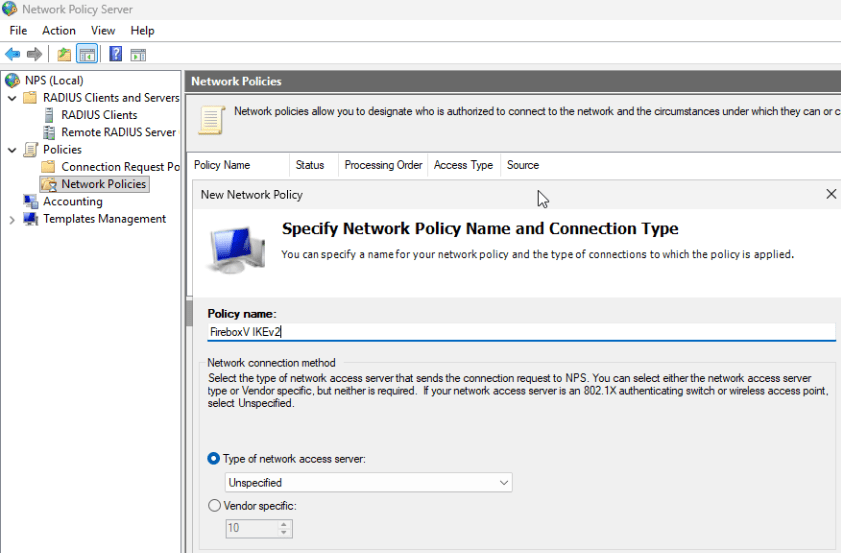

Policies → Network Policies → New

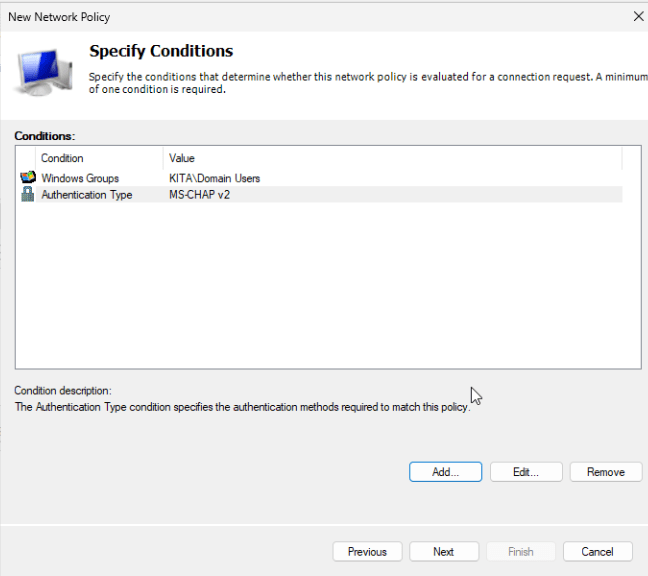

Specify Conditions

• Windows Group: Domain Users (or a specific VPN group)
• Authentication Type: MS‑CHAP‑v2
• You can add more conditions if needed or just add the Win group

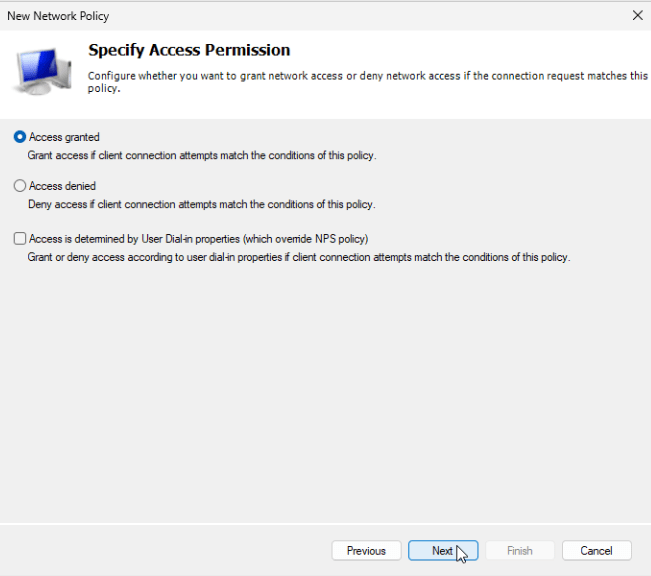

Specify Access Permission

Leave at Access granted (default)

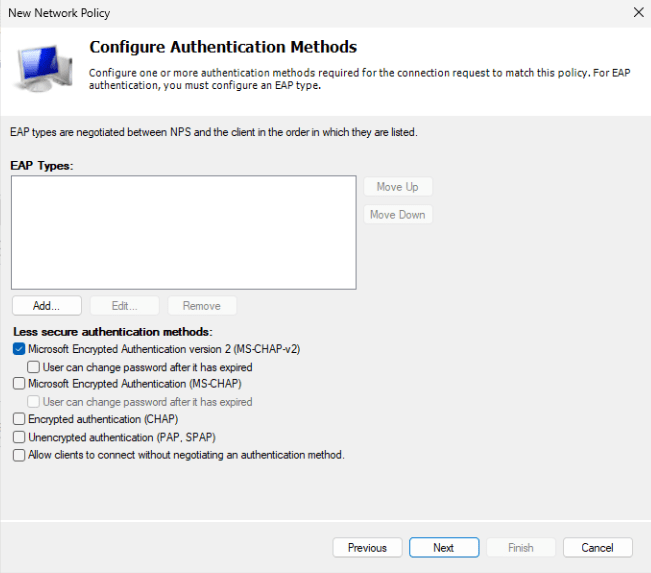

Configure Authentication Methods

Select only Microsoft Encrypted Authentication version 2 (MS‑CHAP‑v2)

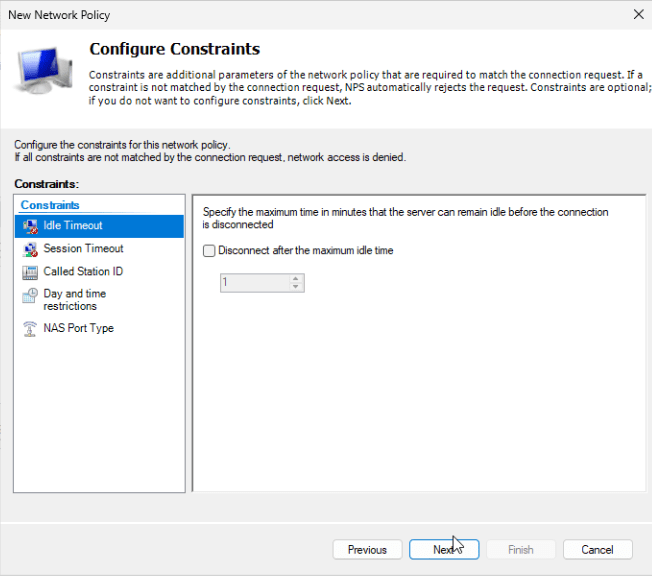

Configure Constraints

Keep defaults

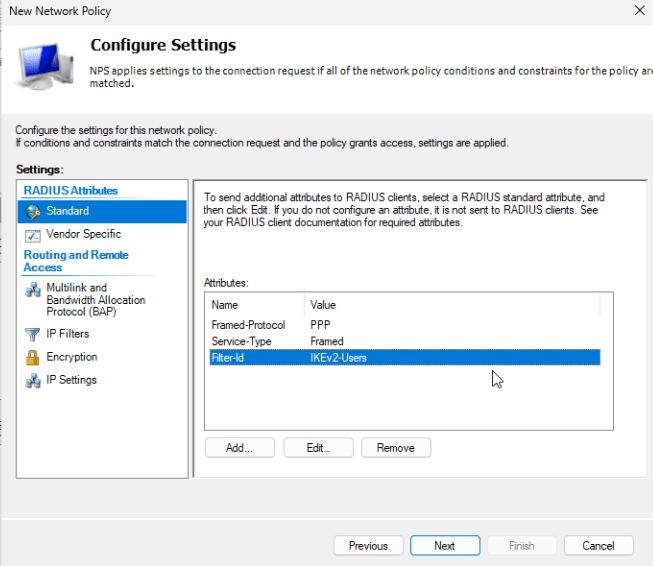

Configure Settings

Add a Filter‑Id attribute:
Click Add
Choose Filter‑Id
Enter: IKEv2-Users

⚠️ Important:

• The Filter‑Id must match exactly the group name configured in the Firebox IKEv2 settings
• It is case‑sensitive
• Default Firebox group name is IKEv2-Users

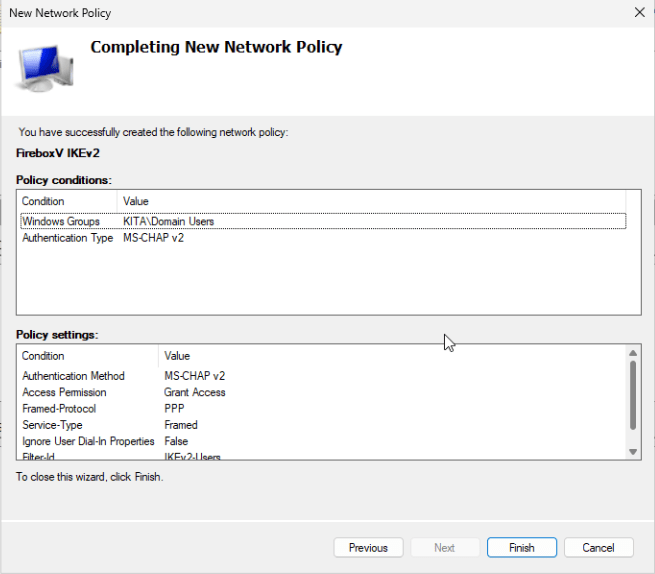

Finish the wizard

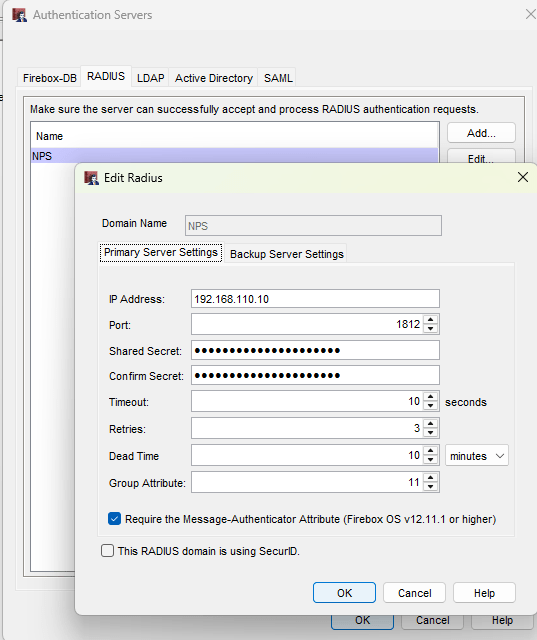

Configure RADIUS on the Firebox

In Authentication → Servers → RADIUS:

• Domain name: Any label name
• IP address: NPS server IP
• Shared Secret: Same as in NPS
• Leave other settings at default

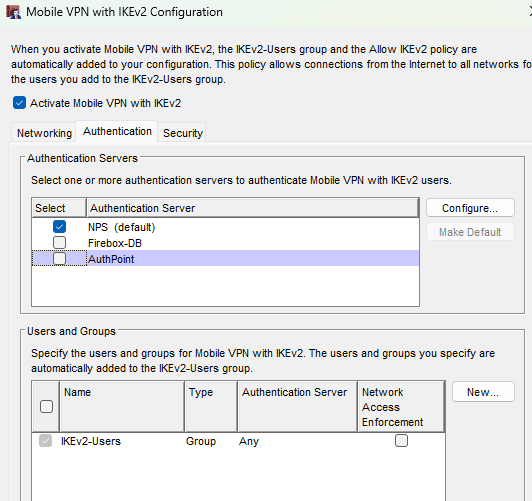

Configure IKEv2 to Use RADIUS

In VPN → Mobile VPN → IKEv2 → Authentication:

• Select the RADIUS server you created
• Ensure the Group Name matches the NPS Filter‑Id (e.g., IKEv2-Users)

How Radius Authentication Works

1. The IKEv2 client connects to the Firebox
2. Firebox sends the username/password to NPS via RADIUS
3. NPS validates the user against Active Directory
4. If authentication succeeds, NPS sends back:
   • Access‑Accept
   • Filter‑Id = IKEv2-Users
5. Firebox applies the matching IKEv2 group policy and firewall rules
